Tornillo de bola de la serie SFA resistente al polvo y de bajo ruido

Principales parámetros técnicos y diseño
Fuerte protección contra el polvo: utiliza un sistema de sellado compuesto tipo tapa terminal, que generalmente incluye una combinación de sellos raspadores elásticos y sellos laberínticos sin contacto, lo que garantiza que no entren contaminantes en la pista de lubricación.
Bajo nivel de ruido: la geometría optimizada del canal de circulación de bolas y las interfaces del tubo de retorno reducen el impacto y la turbulencia de las bolas, logrando un funcionamiento silencioso.
Precisión y rendimiento: ofrece grados de precisión como C5 y C7, con una eficiencia de transmisión >90%, lo que garantiza protección sin sacrificar la eficiencia y precisión de la transmisión.
Compatibilidad de especificaciones: Las dimensiones de montaje de las tuercas generalmente son compatibles con la serie de bridas estándar (SFU), lo que facilita las actualizaciones de equipos o el reemplazo directo y reduce los costos de cambio de diseño.

Aplicación
La serie SFA es la opción ideal para los siguientes campos con estrictos requisitos de limpieza y entornos de trabajo tranquilos:
Salas limpias y fabricación de precisión: equipos de manipulación de obleas semiconductoras, líneas de producción de paneles LCD, instrumentos ópticos de precisión.
Industrias Alimentarias y Farmacéuticas: Máquinas envasadoras automatizadas, máquinas llenadoras, equipos dispensadores farmacéuticos, que cumplen con los estándares GMP.
Conjunto de electrónica de alta gama: máquinas de colocación SMT, máquinas dispensadoras de precisión, equipos de prueba automatizados para componentes de teléfonos móviles/computadoras.
Equipos médicos y de laboratorio: Instrumentos analíticos médicos, equipos de muestreo automatizados, plataformas de automatización de laboratorio.

El husillo de bolas resistente al polvo y de bajo ruido de la serie SFA representa el desarrollo inteligente y fácil de usar de componentes de transmisión de precisión. No sólo resuelve el problema de la "usabilidad", sino que también se esfuerza por lograr un "rendimiento excelente" y una "durabilidad" en entornos exigentes. Elegir la serie SFA significa inyectar potencia de precisión confiable, silenciosa y duradera en sus equipos, mejorando directamente la competitividad de sus productos finales en el mercado de alta gama.

_Parámetros

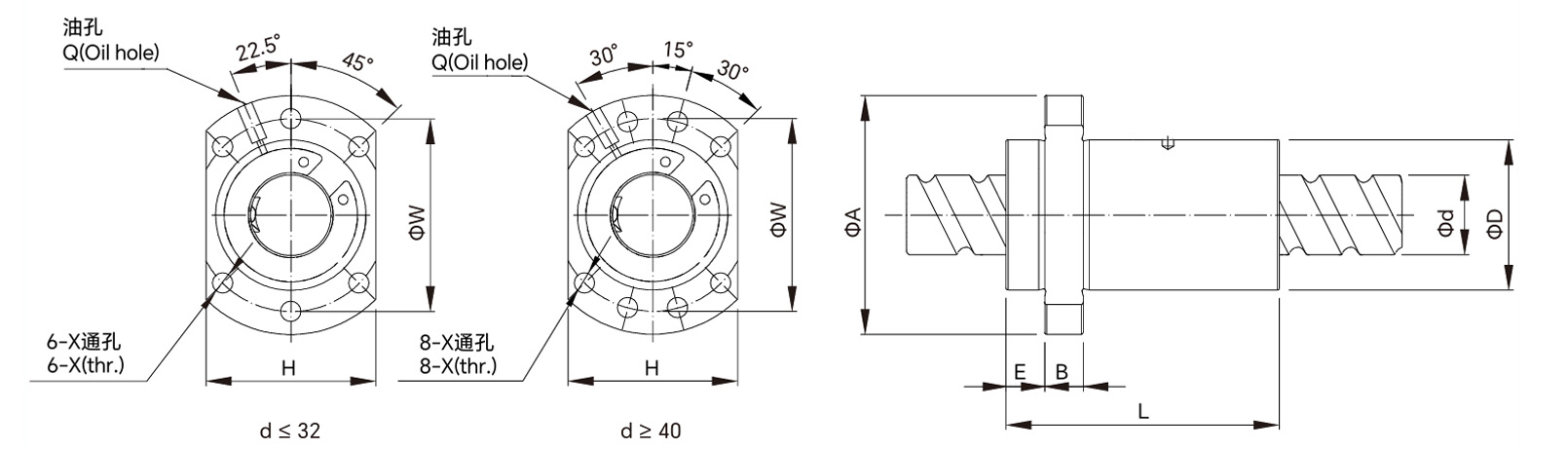

_Dibujos

_{Admite la selección de combinación de productos}

_{Production Capacity}

Cyclone Milling Machines LWN160-6000mm Leistritz Cyclone milling machines imported directly from Germany, the ball screw shaft precision can be C3, C5, and C7 the max length can be 7000mm

Rolled Thread CNC Machines ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan. The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop We conduct nut assembly in a constant temperature workshop,  all workers having decades of work experience and zero clearance between the screw and nut.

Ball Screw Assembly Workshop One ball screw shaft matches one ball screw nut. Because each ball screw shaft has a very tiny different tolerance. There are dozens of different ball sizes for different screw shaft. Our ball screw shaft and nut can be interchanged with the Taiwan TBI ball screw shaft and nut very well.

_{Model Code Explanation}

_{Design Accuracy}

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1～1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms	Reference	Definition	Allowable
Travel Compensation	T	Travel compensation is the deduction between specified and nominal travel in the useful travel. A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load. Therefore"T "” is usually a negative value. Note:if no compensation is needed,specified travel is the same as nominal travel.	Table 1.1.2
Actual Travel		Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel		Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation	E	Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations	e	Travel variations is the coverage of 2 lines drawn parallel to the mean travel. Maximum width of variation within the travel length. Actual width of variation for the length of 300mm taken anywhere within the travel length. Wobble error, actual width of variation for one revolution (2πt radian)	Table 1.1.2 Table 1.1.3 Table 1.1.3

Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Table 1.1.3 International standard of accuracy grade for ball screw

Grade	C0	C1	C2	C3	C5	C7	C10
	3.5	5	7	8	18	50	210
	2.5	4	5	6	8

1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.
