Principales parámetros técnicos y diseño
1. Sistema de circulación de rodillos: utiliza un retenedor de rodillos de precisión para garantizar una circulación suave y sincrónica de cada rodillo, evitando colisiones y fricciones, manteniendo un bajo nivel de ruido y un bajo aumento de temperatura incluso a altas velocidades.
2. Clase de precisión: ofrece opciones de precisión de primer nivel, desde grado de precisión (P) hasta grado de ultraprecisión (UP), lo que garantiza que las cargas pesadas y la alta precisión no sean mutuamente excluyentes.
3. Configuración de precarga y rigidez: normalmente viene de serie con una precarga pesada (C3) para mejorar la rigidez del sistema; algunos modelos ofrecen una opción de precarga ultra pesada (C5).
4. Tecnología de sellado: Equipado con múltiples sellos y raspadores de alta resistencia para evitar que las partículas grandes y el polvo generado en entornos de carga pesada ingresen a la pista de rodadura.
Aplicaciones
La guía lineal tipo rodillo de la serie RGH-CA/HA es la opción ideal para los siguientes equipos de alta precisión y servicio pesado de primer nivel:
Máquinas herramienta CNC de servicio ultrapesado: ejes lineales centrales de grandes centros de mecanizado de cinco ejes con pórtico, máquinas taladradoras y fresadoras de piso de servicio pesado y rectificadoras de guías.
Equipos pesados de alta precisión: grandes máquinas de medición de coordenadas, máquinas herramienta de procesamiento óptico de ultraprecisión y prensas de alta resistencia para envases de semiconductores.
Energía e industria pesada: equipos de procesamiento de cajas de cambios de energía eólica, grandes líneas de procesamiento de bloques de cilindros de motores diésel y guía de precisión para prensas pesadas.
Equipos de investigación científica de alta gama: mecanismos de carga y movimiento para fuentes de radiación de sincrotrón y plataformas de prueba de componentes de naves espaciales.
La guía lineal tipo rodillo de la serie RGH-CA/HA es una obra maestra que supera los límites físicos de la tecnología de movimiento lineal. Abandona la búsqueda de la aplicabilidad universal a través de una velocidad extrema y baja fricción, llevando en cambio la capacidad de carga, la rigidez y la estabilidad al extremo. No es simplemente un componente, sino una fuerza decisiva para garantizar un mecanizado de alto rendimiento y alta precisión de equipos pesados.
Parámetros
| Modelo No. | Dimensiones
de la Asamblea
(mm) | Dimensiones of Block
(mm) | Dimensiones of Rail
(mm) | Montaje
Perno para ferrocarril | Básico
Dinámica
Cargar
Rating | Básico
Estático
Cargar
Rating | Estático Rated
Momento(kgf.m） | 重量
Peso |
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | WR | RRHH | D | h | d | P | E | （mm） | C(KN) | C0(KN) | MR
KN-m | MP
KN-m | MI
KN-m | bloquear
kg | Ferrocarril
kg/m |
| RGH15CA | 28 | 4 | 9.5 | 34 | 26 | 4 | 26 | 45 | 68 | 13.4 | 4.7 | 5.3 | M4x8 | 6 | 7.6 | 10.1 | 15 | 16.5 | 7.5 | 5.7 | 4.5 | 30 | 20 | M4x16 | 11.3 | 24 | 0.311 | 0.173 | 0.173 | 0.20 | 1.8 |
| RGH20CA | 34 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5x8 | 8 | 8.3 | 8.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.40 | 2.76 |
| RGH20HA | 50 | 77.5 | 106 | 18.8 | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.53 |
| RGH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 7.25 | 12 | M6x8 | 9.5 | 10.2 | 10 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.61 | 3.08 |
| RGH25HA | 50 | 81 | 114.4 | 21.5 | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.75 |
| RGH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8x10 | 9.5 | 9.5 | 10.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 0.90 | 4.41 |
| RGH30HA | 60 | 93 | 131.8 | 24.5 | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.16 |
| RGH35CA | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8x12 | 12 | 16 | 19.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.57 | 6.06 |
| RGH35HA | 72 | 106.5 | 151.5 | 25.25 | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 2.06 |
| RGH45CA | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10x17 | 16 | 20 | 24 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.18 | 9.97 |
| RGH45HA | 80 | 139.8 | 187 | 37.9 | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.13 |
| RGH55CA | 80 | 10 | 23.5 | 100 | 75 | 12.5 | 75 | 125.5 | 183.7 | 37.75 | 12.5 | 12.9 | M12x18 | 17.5 | 22 | 27.5 | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14x45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 4.89 | 13.98 |
| RGH55HA | 95 | 173.8 | 232 | 51.9 | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 6.68 |
| RGH65CA | 90 | 12 | 31.5 | 126 | 76 | 25 | 70 | 160 | 232 | 60.8 | 15.8 | 12.9 | M16x20 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16x50 | 213 | 411.6 | 16.20 | 11.59 | 11.59 | 8.89 | 20.22 |
| RGH65HA | 120 | 223 | 295 | 67.3 | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 12.13 |

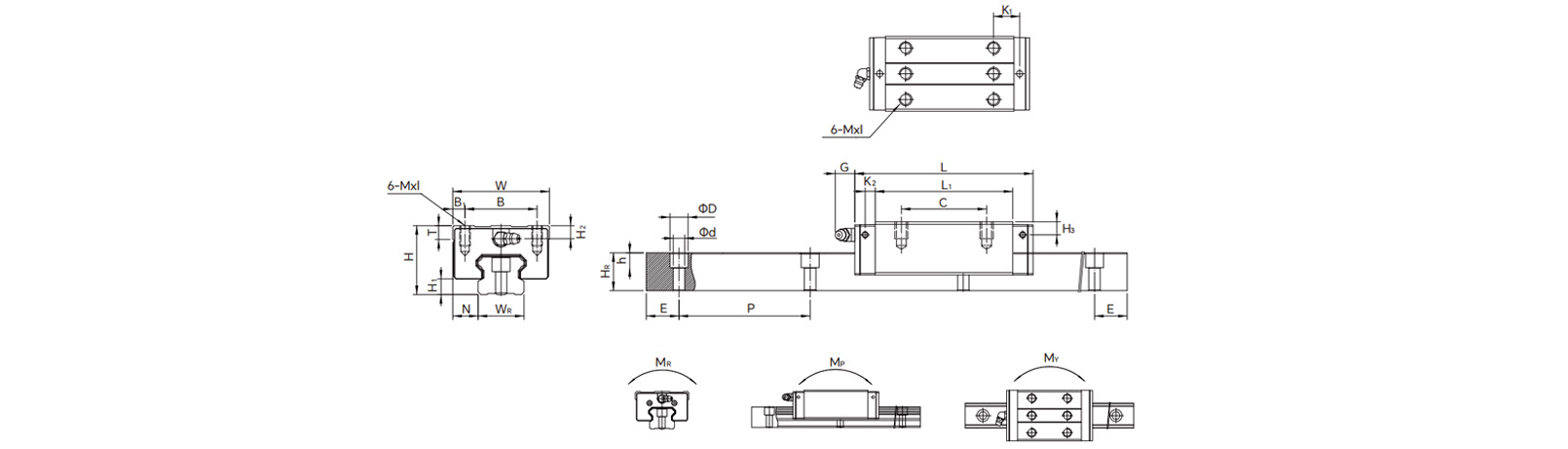

Dibujos
Admite la selección de combinación de productos
Production Capacity
 |
Cyclone Milling Machines
LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm |
Rolled Thread CNC Machines
PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10 |
|
 |
Rolled Thread CNC Machines
ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10 |
Ball Screw Assembly Workshop
We conduct nut assembly in a constant temperature workshop, all workers
having decades of work experience and zero clearance between the screw
and nut. |
 |
 |
Ball Screw Assembly Workshop
One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well. |
Linear Guideway Selection
Non-interchangeable type:
Note:
1.The roman numerals express a matched set of rails.
2.No symbol indicates standard protection (end seal and bottom seal)
ZZ:End seaL bottom sealand scraper
KK: Double seals, bottom seal and scraper
DD: Double seals and bottom seal
3.Block type HGL is the low profile design of HGH (square type), the assembled height is same as HGW (flange type) in same size.
Model Number of HG Rail:
Interchangeable type:
Linear Guideway Preload & Precision Instruction
Preload Classes
offers three classes of standard preload for various applications and conditions.
| Class |
Code |
Preload |
Condition |
Examples of Application |
| Light Preload |
ZO |
0~0.02C |
Certain load direction, low impact, low precision required |
Transportation devices, auto-packing machines, X-Y axis for general industrial machines, welding machines, welders |
| Medium Preload |
ZA |
0.05C~0.07C |
High precision required |
Machining centers,Z axis for general industrial machines, EDM,NC lathes, Precision X-Y tables, measuring equipment |
| Heavy Preload |
ZB |
0.10C~0.12C |
High rigidity required, with vibration and impact |
Machining centers, grinding machines,NC lathes,horizontal and vertical milling machines, Z axis of machine tools, Heavy cutting machines |
| Class |
Interchangeable Guideway |
Non-Interchangeable Guideway |
| Preload classes |
Z0,ZA |
Z0,ZA,ZB |
Besides the standard top mounting type, WANGONG also offers the bottom mounting type of rails to customers.
| Mounting from Top |
Mounting from bottom |
 |
 |
Acouracy Classes
Thp accuracy of HG series can be classified into normal (C), high (H), precision (P), super precision (SP), ultra precision (UP), five classes. Please choose the class by referring the accuracy of applied equipment.
Accuracy Standards
| Item |
HG-15,20 |
| Accuracy Classes |
Normal (C) |
High (H) |
Precision (P) |
| Dimensional tolerance of height H |
±0.1 |
±0.03 |
±0.015 |
| Dimensional tolerance of width N |
±0.1 |
±0.03 |
±0.015 |
| Variation of height H |
0.02 |
0.01 |
0.006 |
| Variation of width N |
0.02 |
0.01 |
0.006 |
| Running parallelism of block surface C to surface A |
See Table |
| Running parallelism of block surface D to surface B |
See Table |
| Item |
HG-25,30,35 |
| Accuracy Classes |
Normal (C) |
High (H) |
Precision (P) |
| Dimensional tolerance of height H |
±0.1 |
±0.04 |
±0.02 |
| Dimensional tolerance of width N |
±0.1 |
±0.04 |
±0.02 |
| Variation of height H |
0.02 |
0.015 |
0.007 |
| Variation of width N |
0.03 |
0.015 |
0.007 |
| Running parallelism of block surface C to surface A |
See Table |
| Running parallelism of block surface D to surface B |
See Table |
| Item |
HG-45,55 |
| Accuracy Classes |
Normal (C) |
High (H) |
Precision (P) |
| Dimensional tolerance of height H |
±0.1 |
±0.05 |
±0.025 |
| Dimensional tolerance of width N |
±0.1 |
±0.05 |
±0.025 |
| Variation of height H |
0.03 |
0.015 |
0.007 |
| Variation of width N |
0.03 |
0.02 |
0.01 |
| Running parallelism of block surface C to surface A |
See Table |
| Running parallelism of block surface D to surface B |
See Table |
Acouracy of Running Parallelism
| Rail Length (mm) |
Accuracy (μm) |
| C |
H |
P |
SP |
UP |
| 0~100 |
12 |
7 |
3 |
2 |
2 |
| 100~200 |
14 |
9 |
4 |
2 |
2 |
| 200~300 |
15 |
10 |
5 |
3 |
3 |
| 300~500 |
17 |
12 |
6 |
3 |
3 |
| 500~700 |
20 |
13 |
7 |
4 |
2 |
| 700~900 |
22 |
15 |
8 |
5 |
3 |
| 900~1,100 |
24 |
16 |
9 |
6 |
3 |
| 1,100~1,500 |
26 |
18 |
11 |
7 |
4 |
| 1,500~1,900 |
28 |
20 |
13 |
8 |
4 |
| 1,900~2,500 |
31 |
22 |
15 |
10 |
5 |
| 2,500~3,100 |
33 |
25 |
18 |
11 |
6 |
| 3,100~3,600 |
36 |
27 |
20 |
14 |
7 |
| 3,600~4,000 |
37 |
28 |
21 |
15 |
7 |
