Tornillo de bola resistente a prueba de polvo de la serie SCNI/SCI

Inicio · Productos · Tornillo de bola · Tornillo de bola resistente a prueba de polvo de la serie SCNI/SCI
Tornillo de bola resistente a prueba de polvo de la serie SCNI/SCI

Tornillo de bola resistente a prueba de polvo de la serie SCNI/SCI

El husillo de bolas de la serie SCNI/SCI es una versión mejorada y protegida del tipo cilíndrico (serie SCA). Si bien mantiene las ventajas de ahorro de espacio de una tuerca cilíndrica, integra un sistema de sellado altamente eficiente, proporcionando una solución de transmisión de precisión compacta y robusta para equipos compactos en entornos con polvo, residuos o salpicaduras de líquidos, como procesamiento de alimentos, maquinaria exterior y equipos de carpintería.

Tecnología

El valor central de esta serie radica en "construir una defensa confiable en un espacio limitado" Resuelve simultáneamente los dos principales desafíos de las limitaciones de espacio y la protección del medio ambiente, ofreciendo ventajas generales excepcionales

Dimensiones características Serie SCNI/SCI (tipo resistente al polvo de cañón recto) Tipo recto estándar (serie SCA) Tipo resistente y a prueba de polvo montado en brida (p. ej. Serie SFNU)
Ventajas principales Doble optimización para la adaptabilidad ambiental en espacios confinados. Ultracompacto y flexible. Protección robusta con instalación sencilla.
Ocupación espacial Las dimensiones radiales compactas conservan las ventajas estructurales del cañón recto sin bridas salientes. Pequeñas dimensiones radiales. Diámetro de brida ampliado para dimensiones de montaje radial.
Capacidad de protección El sistema de sellado integrado de múltiples etapas (laberinto raspador) repele eficazmente la entrada de polvo y residuos. Normalmente sólo protección básica contra el polvo, lo que ofrece un bajo nivel de protección. El sistema de sellado multietapa integrado ofrece una contención superior.
Flexibilidad de instalación Altamente adaptable, que admite diversos métodos de montaje, incluidas tuercas de seguridad y manguitos de sujeción para una instalación sencilla y un ajuste fino dentro de cavidades confinadas. Alto. Instalación fija que requiere una superficie de montaje de brida dedicada; flexibilidad moderada.
Adaptabilidad ambiental Diseñado robustamente para entornos operativos compactos y propensos a contaminantes. Bajo, adecuado sólo para ambientes limpios. Altamente eficaz para entornos operativos contaminados.
Escenarios de aplicación típicos Aplicaciones: Maquinaria compacta para trabajar la madera, equipos de envasado de alimentos, robótica agrícola, aparatos de inspección de campo. Impresoras 3D, robots de escritorio, instrumentos de laboratorio limpios. Adecuado para grandes centros de mecanizado, líneas de producción industrial y maquinaria pesada.

Integración de diseño dual
Estructura compacta: utiliza una tuerca cilíndrica estándar, fijada con una tuerca de bloqueo externa (collar) o un manguito de sujeción, ahorrando espacio de instalación.
Sellado potente: los sellos limpiaparabrisas de tipo contacto y los sellos laberínticos sin contacto están integrados en ambos extremos de la tuerca, formando múltiples líneas de defensa para garantizar una lubricación limpia y bloquear la mayoría de los contaminantes.
Precisión y rendimiento: como tornillo de bola enrollado, la precisión estándar suele ser de grado C7, lo que proporciona una eficiencia de transmisión confiable y precisión de posicionamiento. Hay opciones de precarga disponibles para eliminar el espacio libre axial.
Especificaciones y compatibilidad: Disponible en varios diámetros de eje y cables. El diámetro exterior suele ser el mismo que el de la tuerca cilíndrica estándar (SCA) de la misma especificación, lo que facilita su actualización y reemplazo directo en diseños compactos existentes, mejorando la resistencia ambiental.

Escenarios de aplicación
La serie SCNI/SCI es una opción ideal para los siguientes entornos con limitaciones de espacio y sucios:
Equipos de procesamiento compactos: pequeñas máquinas de grabado CNC, máquinas de grabado en piedra de escritorio, máquinas de grabado para trabajar la madera.
Equipos de automatización especializados: Pequeñas máquinas clasificadoras y envasadoras en la industria alimentaria; módulos de siembra o fertilización en automatización agrícola.
Equipos exteriores y móviles: Mecanismos telescópicos para instrumentos de prueba portátiles, componentes de accionamiento para cardanes de fotografía exterior.
Ambientes industriales que requieren limpieza: Unidades de automatización cercanas a talleres en fábricas de electrónica, que requieren protección contra el polvo pero con espacio de instalación limitado.

El husillo de bolas cilíndrico resistente al polvo de la serie SCNI/SCI es la "navaja suiza multifuncional" entre los componentes de transmisión de precisión. Proporciona con éxito dispositivos compactos con una potente resistencia ambiental sin aumentar su tamaño. Elegir esta serie significa que puede obtener una solución de ingeniería óptima para requisitos de diseño desafiantes —tanto compacidad como durabilidad—, mejorando significativamente la confiabilidad y la aplicabilidad comercial de su equipo en condiciones adversas.

Parámetros

Modelo No. d l Da Dimensión Clasificación de carga Rigidez Peso
D L L1 L2 M R n Ca(kgf) Coa(kgf) Kgf/um Kg
SCNI1605-4 16 5 3.175 30 45 9 20 5 3 1x4 1380 3052 33 0.146
SCNI2005-4 20 5 3.175 34 45 9 20 5 3 1x4 1551 3875 39 0.17
SCNI2505-4 25 5 3.175 40 45 9 20 5 3 1x4 1724 4904 45 0.226
SCNI2510-4 10 4.762 46 85 13 30 5 3 1x4 2954 7295 51 0.664
SCNI3205-4 32 5 3.175 46 45 9 20 5 3 1x4 1922 6343 52 0.252
SCNI3210-4 10 6.35 54 85 13 30 5 3 1x4 4805 12208 62 0.784
SCNI4005-4 40 5 3.175 56 45 9 20 5 3 1x4 2110 7988 59 0.406
SCNI4010-4 10 6.35 62 85 13 30 5 3 1x4 5399 15500 72 0.932
SCNI5010-4 50 10 6.35 72 85 13 30 5 3 1x4 6004 19614 83 1.21
SCNI6310-4 63 10 6.35 85 85 13 30 6 3.5 1x4 6719 25358 95 1.52
SCNI8010-4 80 10 6.35 105 85 13 30 8 4.5 1x4 7346 31953 109 2.292
SCI1604-4 16 4 2.381 30 40 9 15 3 1.5 1x4 973 2406 32 0.14
SCI2004-4 20 4 2.381 34 40 9 15 3 1.5 1x4 1066 2987 37 0.16
SCI2504-4 25 4 2.381 40 40 9 15 3 1.5 1x4 1180 3795 43 0.22
SCI3204-4 32 4 2.381 46 40 9 15 3 1.5 1x4 1296 4838 49 0.2

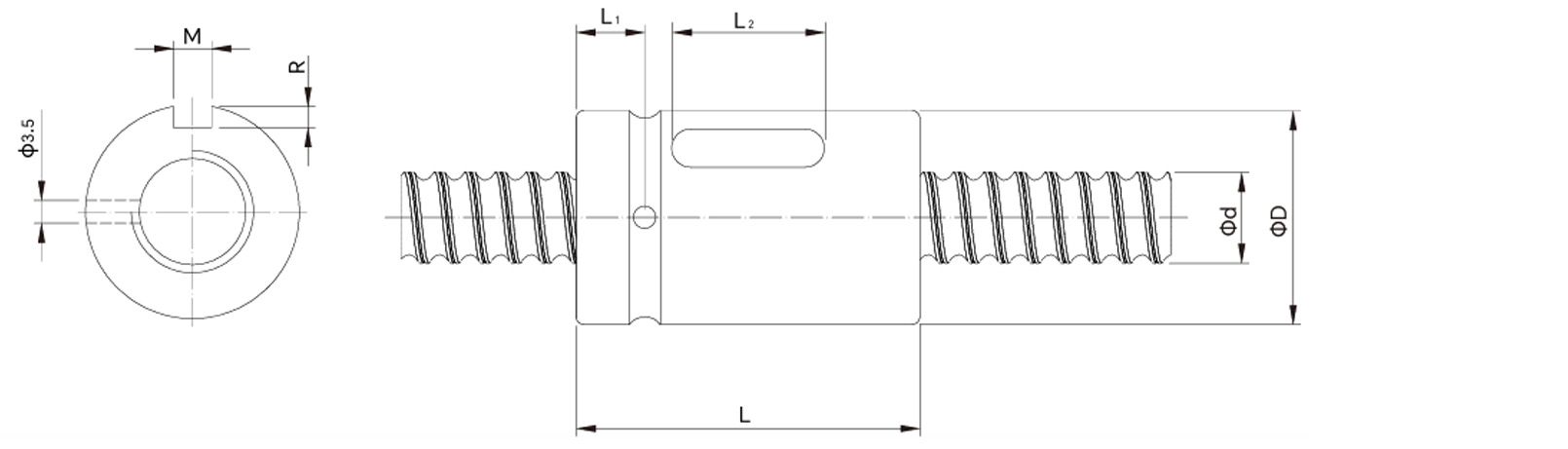

Dibujos
