Tornillo de bola resistente a prueba de polvo de la serie SFNU

Inicio · Productos · Tornillo de bola · Tornillo de bola resistente a prueba de polvo de la serie SFNU
Tornillo de bola resistente a prueba de polvo de la serie SFNU

Tornillo de bola resistente a prueba de polvo de la serie SFNU

La serie SFNU es un tornillo de bola diseñado específicamente para soportar duras condiciones de trabajo que involucran polvo, residuos y salpicaduras de líquidos. Basado en la serie SFU con bridas estándar, integra un sistema de sellado y protección contra el polvo altamente eficiente para garantizar la limpieza de la pista de rodadura interna, manteniendo así una alta precisión y un funcionamiento estable a largo plazo en entornos complejos. Es una opción de transmisión ideal para equipos de automatización altamente confiables.

Tecnología

El verdadero valor de la serie SFNU reside en su concepto de diseño de defensa proactivo, que contrasta marcadamente con las capacidades de protección de los tornillos de bola estándar. Sus principales ventajas se comparan a continuación

Dimensiones características Serie SFNU Tipo resistente al polvo Tipo de brida estándar (por ejemplo Serie SFU)
Fortalezas fundamentales Resiliencia ambiental excepcional, diseñada para condiciones operativas exigentes. Rentable, adecuado para condiciones de funcionamiento limpias o generales.
Capacidad de protección El sistema de sellado de múltiples etapas (que generalmente incorpora sellos raspadores de contacto, sellos laberínticos sin contacto) bloquea eficazmente la entrada de polvo, residuos y líquidos. Equipado únicamente con sellos antipolvo básicos, que ofrecen protección limitada.
Confiabilidad operativa Las pistas de rodadura internas mantienen una alta limpieza, y la grasa permanece sin contaminar para un funcionamiento estable y confiable a largo plazo y bajas tasas de fallas. En ambientes polvorientos, susceptibles a desgaste acelerado, aumento de ruido o convulsiones debido a la entrada de contaminantes.
Vida útil En condiciones duras equivalentes, la vida útil se prolonga significativamente con intervalos de mantenimiento más largos. La vida útil se reduce significativamente en condiciones de polvo.
Costos de mantenimiento Reduce sustancialmente el tiempo de inactividad inesperado y los costos de reemplazo causados por contaminantes ambientales, generando costos operativos generales más bajos. Puede requerir limpieza, mantenimiento o reemplazo más frecuente.
Escenarios aplicables Las aplicaciones incluyen maquinaria para trabajar la madera, procesamiento de piedra, maquinaria agrícola, fundiciones y equipos para exteriores. Adecuado para zonas limpias de fábrica, laboratorios, líneas de montaje estándar, etc.

Principales parámetros técnicos y diseño
Estructura a prueba de polvo: normalmente utiliza un sello de tapa de extremo multicapa. La capa más externa es un anillo de sellado tipo raspador que elimina poderosamente las partículas de la superficie del eje; la capa interior es un sello laberíntico que bloquea el polvo fino a través de un camino tortuoso.

Precisión y rendimiento: hereda la precisión estándar C7 de los tornillos de bolas laminados, con alta eficiencia de transmisión (>90%). El diseño a prueba de polvo no tiene ningún impacto negativo en la suavidad y precisión del movimiento.

Rango de especificación: proporciona diámetros de eje comunes de φ12 mm a φ50 mm y varias opciones de cables. Las dimensiones de la brida de la tuerca son compatibles con la serie SFU estándar, lo que facilita las actualizaciones y reemplazos de equipos.

Fácil instalación: El diseño de brida integrado permite una instalación idéntica a las tuercas con brida estándar, sin requerir cambios en el diseño estructural del equipo.

Escenarios de aplicación típicos
La serie SFNU proporciona protección de transmisión confiable para industrias que enfrentan desafíos de contaminación, que incluyen:

Procesamiento de madera y piedra: Equipos de aserrado, tallado y rectificado, manipulación de astillas de madera y polvo de piedra.

Maquinaria Agrícola y de Ingeniería: Equipos móviles para exteriores como sembradoras y esparcidoras de fertilizantes, que brindan protección contra el polvo y la humedad.

Industria Alimentaria y de Envasado: Manipulación de polvos ligeramente corrosivos como el azúcar y el almidón.

Automatización General: Unidades de automatización en fábricas cercanas a procesos de molienda, estampación y otros procesos que generan residuos.

El valor principal del potente tornillo de bola de la serie SFNU a prueba de polvo es "proporcionar una armadura protectora para una transmisión de precisión" No es sólo un componente de transmisión, sino una solución confiable para entornos de trabajo hostiles, que garantiza efectivamente el funcionamiento estable a largo plazo de los equipos en condiciones exigentes, reduciendo fundamentalmente los costos de mantenimiento y los riesgos de inactividad.

Parámetros

Modelo No. d l Da Dimensión Clasificación de carga Rigidez Peso
D A B L W H X Q n Ca(kgf) Coa(kgf) Kgf/μm Kg
SFNU1204-4 12 4 2.381 24 40 10 40 32 30 4.5 M6 1x4 902 1884 26 0.138
SFNU1605-4 16 5 3.175 28 48 10 45 38 40 5.5 M6 1x4 1380 3052 32 0.19
SFNU1610-3 10 3.175 28 48 10 57 38 40 5.5 M6 1x3 1103 2401 26 0.22
SFNU2005-4 20 5 3.175 36 58 10 51 47 44 6.6 M6 1x4 1551 3875 39 0.316
SFNU2505-4 25 5 3.175 40 62 10 51 51 48 6.6 M6 1x4 1724 4904 45 0.35
SFNU2510-4 10 4.762 40 62 12 80 51 48 6.6 M6 1x4 2954 7295 50 0.484
SFNU3205-4 32 5 3.175 50 80 12 52 65 62 9 M6 1x4 1922 6343 54 0.588
SFNU3210-4 10 6.350 50 80 12 85 65 62 9 M6 1x4 4805 12208 61 0.832
SFNU4005-4 40 5 3.175 63 93 14 55 78 70 9 M8 1x4 2110 7988 63 0.97
SFNU4010-4 10 6.350 63 93 14 88 78 70 9 M8 1x4 5399 15500 73 1.246
SFNU5010-4 50 10 6.350 75 110 16 88 93 85 11 M8 1x4 6004 19614 85 1.82
SFNU6310-4 63 10 6.350 90 125 18 93 108 95 11 M8 1x4 6719 25358 99 2.576
SFNU8010-4 80 10 6.350 105 145 20 93 125 110 13.5 M8 1x4 7346 31953 109 3.1

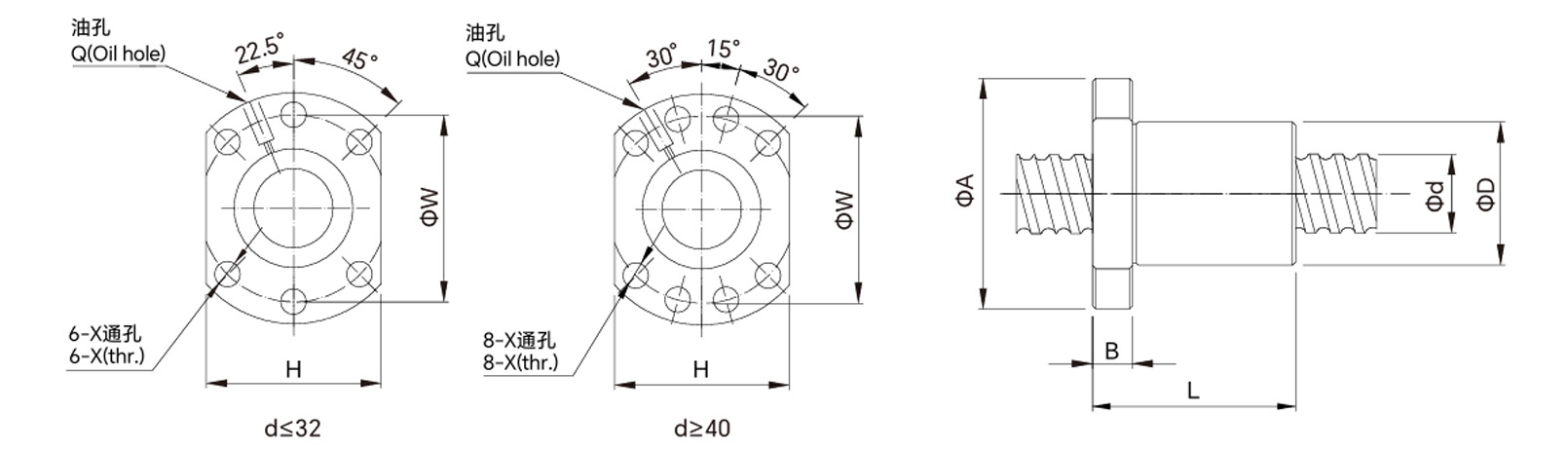

Dibujos


Admite la selección de combinación de productos

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Reference torque kgf.cm Effective threading length mm
Below 4000 4000~10000 or less
Slenderness 1:below 40 Slenderness1:40~1:60 -
Grade Grade Grade
More than the following C0 C1 C2,C3 C5 C0 C1 C2,C3 C5 C1 C2,C3 C5
2 4 ±35% ±40% ±45% ±55% ±45% ±45% ±55% ±65% - - -
4 6 ±25% ±30% ±35% ±45% ±38% ±38% ±45% ±50% - - -
6 10 ±20% ±25% ±30% ±35% ±30% ±30% ±35% ±40% - ±40% ±45%
10 25 ±15% ±20% ±25% ±30% ±25% ±25% ±30% ±35% - ±35% ±40%
25 63 ±10% ±15% ±20% ±25% ±20% ±20% ±25% ±30% - ±30% ±35%
63 100 - - ±15% ±20% - - ±20% ±25% - ±25% ±30%

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.
